Connect an Astra DB MCP server to SkillFlaw

This guide demonstrates how to use SkillFlaw as an MCP client by using the MCP Tools component to run a DataStax Astra DB MCP server in an agent flow.

1. Install an LTS release of Node.js.

tip

uvx is included with uv in the SkillFlaw package.

To use npx server commands, you must first install an LTS release of Node.js. If SkillFlaw runs in an isolated runtime environment, make sure Node.js is installed in that same environment so npx-based MCP servers are available at runtime.

For an example of an npx MCP server in SkillFlaw, see Connect an Astra DB MCP server to SkillFlaw.

2. Create an OpenAI API key.

3. Create an Astra DB Serverless (vector) database, if you don't already have one.

4. Get your database's Astra DB API endpoint and an Astra application token with the Database Administrator role. For more information, see Generate an application token for a database.

5. To follow along with this guide, create a flow based on the Simple Agent template.

   You can also use an existing flow or create a blank flow.

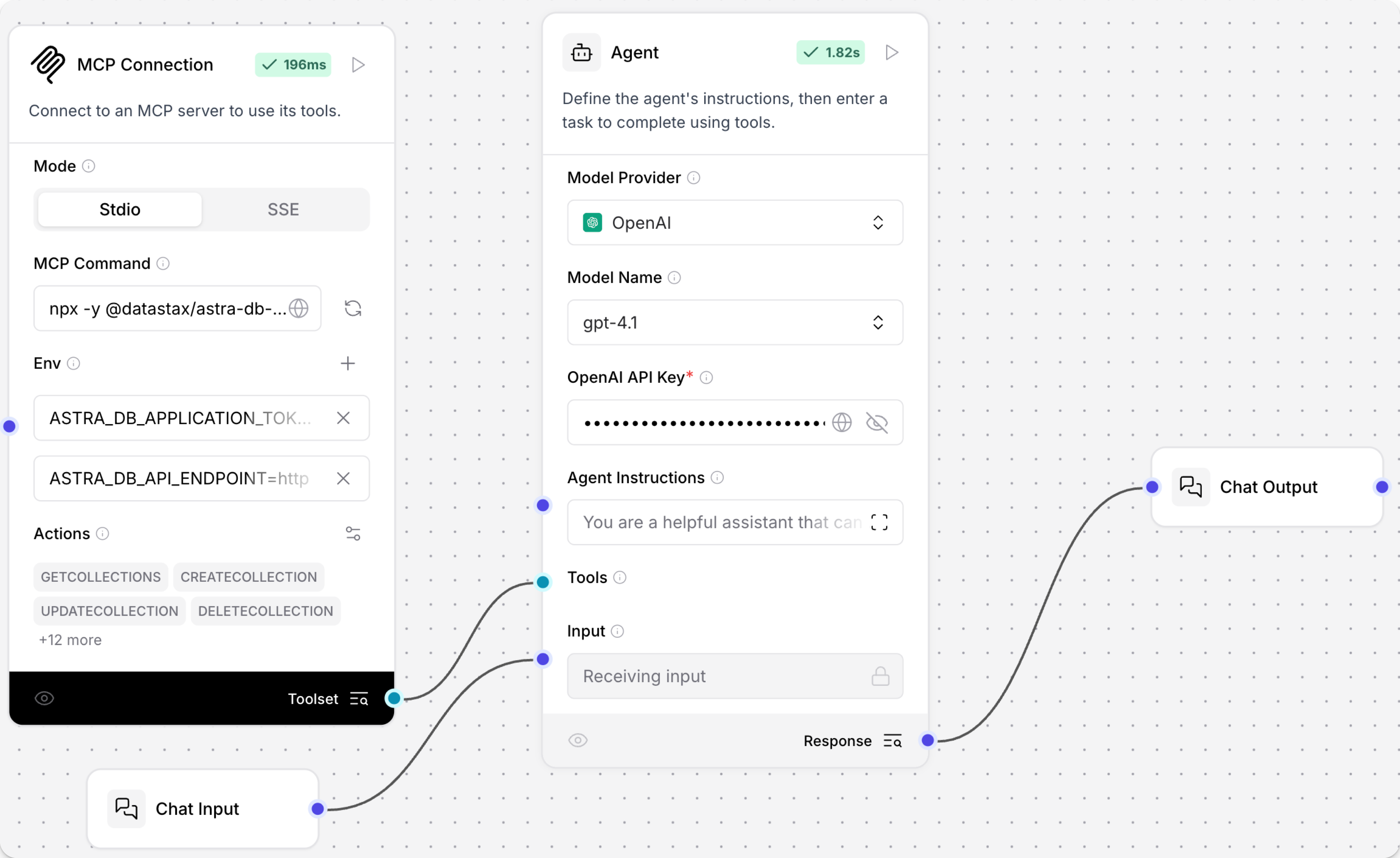

6. Remove the URL tool, and then replace it with an MCP Tools component.

7. Configure the MCP Tools component as follows:

   1. In the MCP Server field, click Add MCP Server.

   2. Select Stdio mode.

   3. In the Name field, enter a name for the MCP server.

   4. In the Command field, add the following code to connect to an Astra DB MCP server:




      _10

      npx -y @datastax/astra-db-mcp




   5. In the Environment Variables fields, add variables for ASTRA_DB_APPLICATION_TOKEN and ASTRA_DB_API_ENDPOINT with the values from your Astra database.

      info

      Environment variables declared in your SkillFlaw .env file can be referenced in your MCP server commands, but you cannot reference global variables declared in SkillFlaw.

      If you want to use variables for ASTRA_DB_APPLICATION_TOKEN and ASTRA_DB_API_ENDPOINT, add them to SkillFlaw's .env file, and then restart SkillFlaw. For more information, see global variables.

      Add each variable separately. To add another variable field click Add More.




      _10

      ASTRA_DB_APPLICATION_TOKEN=AstraCS:...






      _10

      ASTRA_DB_API_ENDPOINT=https://...-us-east-2.apps.astra.datastax.com




8. In the Agent component, add your OpenAI API key.

   The default model is an OpenAI model. If you want to use a different model, edit the Model Provider, Model Name, and API Key fields accordingly.



9. Open the Playground, and then ask the agent, What collections are available?

   Since SkillFlaw is connected to your Astra DB database through the MCP server, the agent chooses the correct tool and connects to your database to retrieve the answer. For example:




   _10

   The available collections in your database are:

   _10

   collection_002

   _10

   hardware_requirements

   _10

   load_collection

   _10

   nvidia_collection

   _10

   software_requirements
